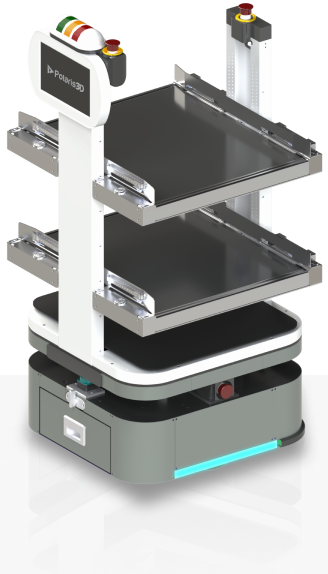

SMAR: Compact Seamless Manufacturing Automation Robot

Compact Seamless Manufacturing
Automation Robot

No space constraints,
No development burden. a faster and
more efficient smart factory solution

SMAR: Compact Seamless Manufacturing Automation Robot

SMAR - Line-up

Built on a standardized lower mobility platform, our upper service modules are tailored for

a wide range of applications

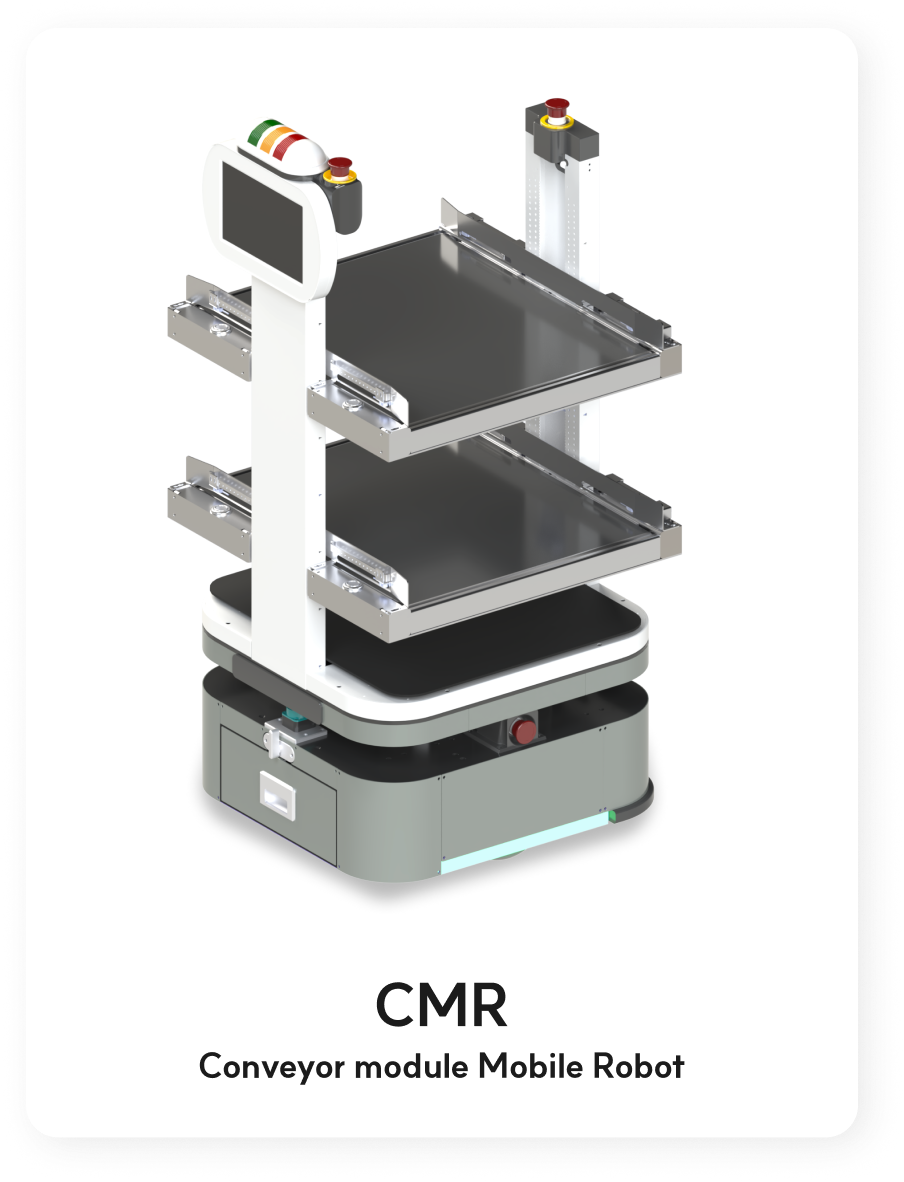

CMRConveyor module
Mobile Robot

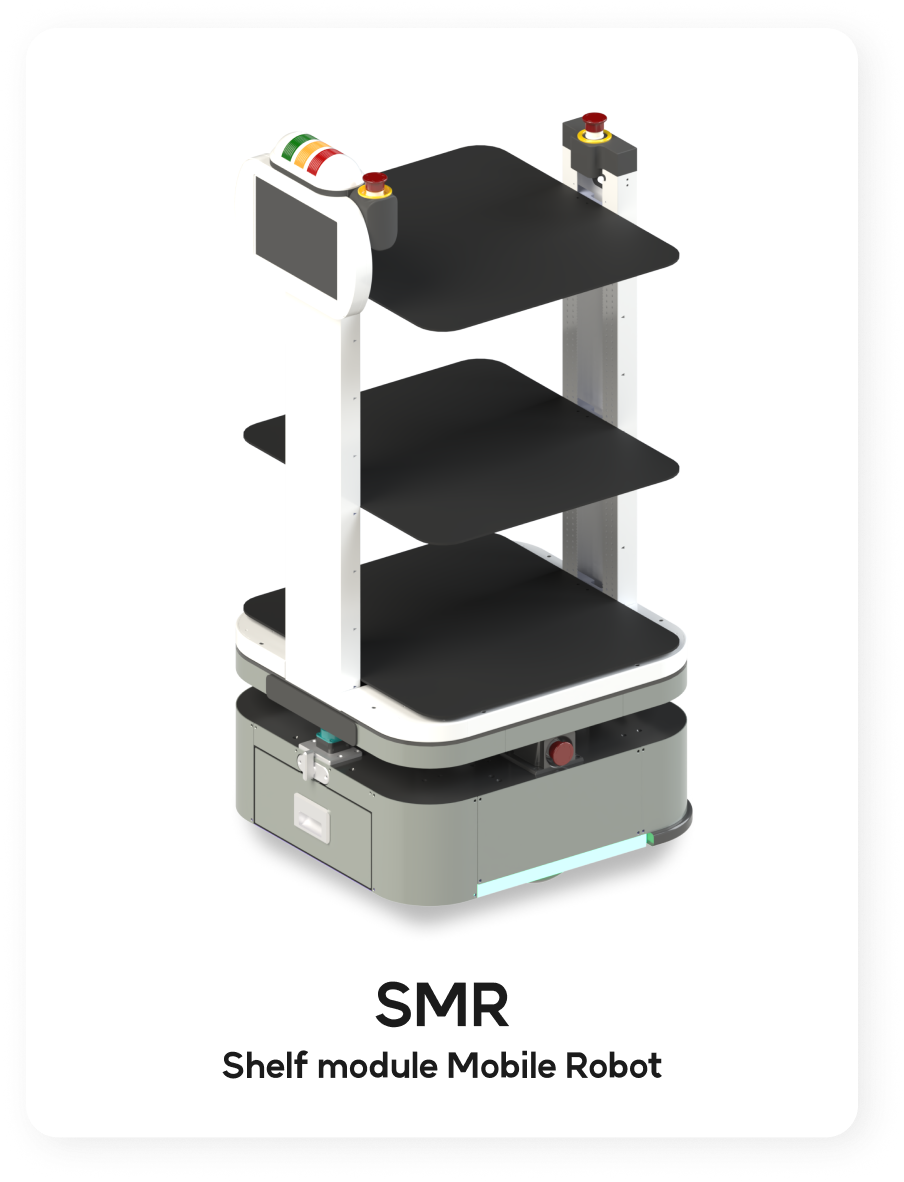

SMRShelf module
Mobile Robot

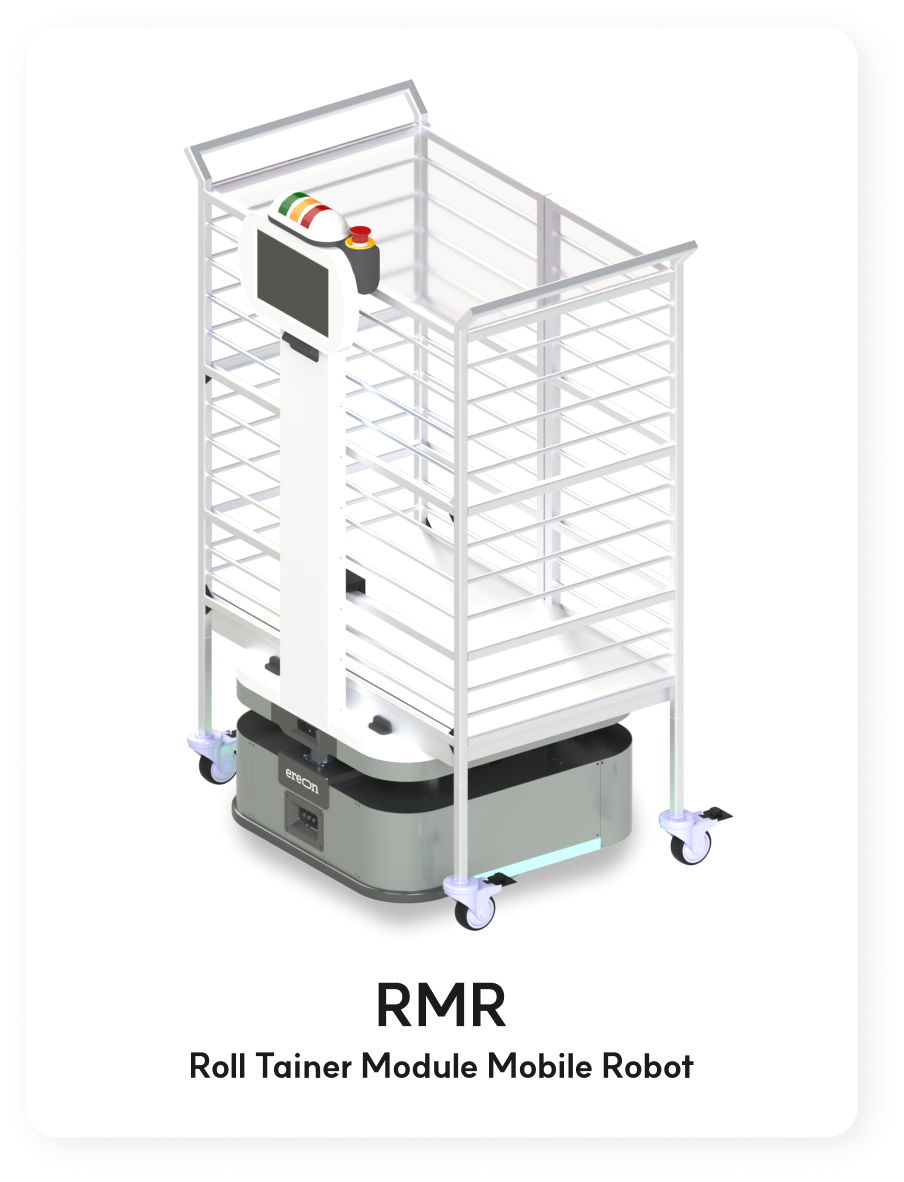

RMRRoll Tainer Module
Mobile Robot

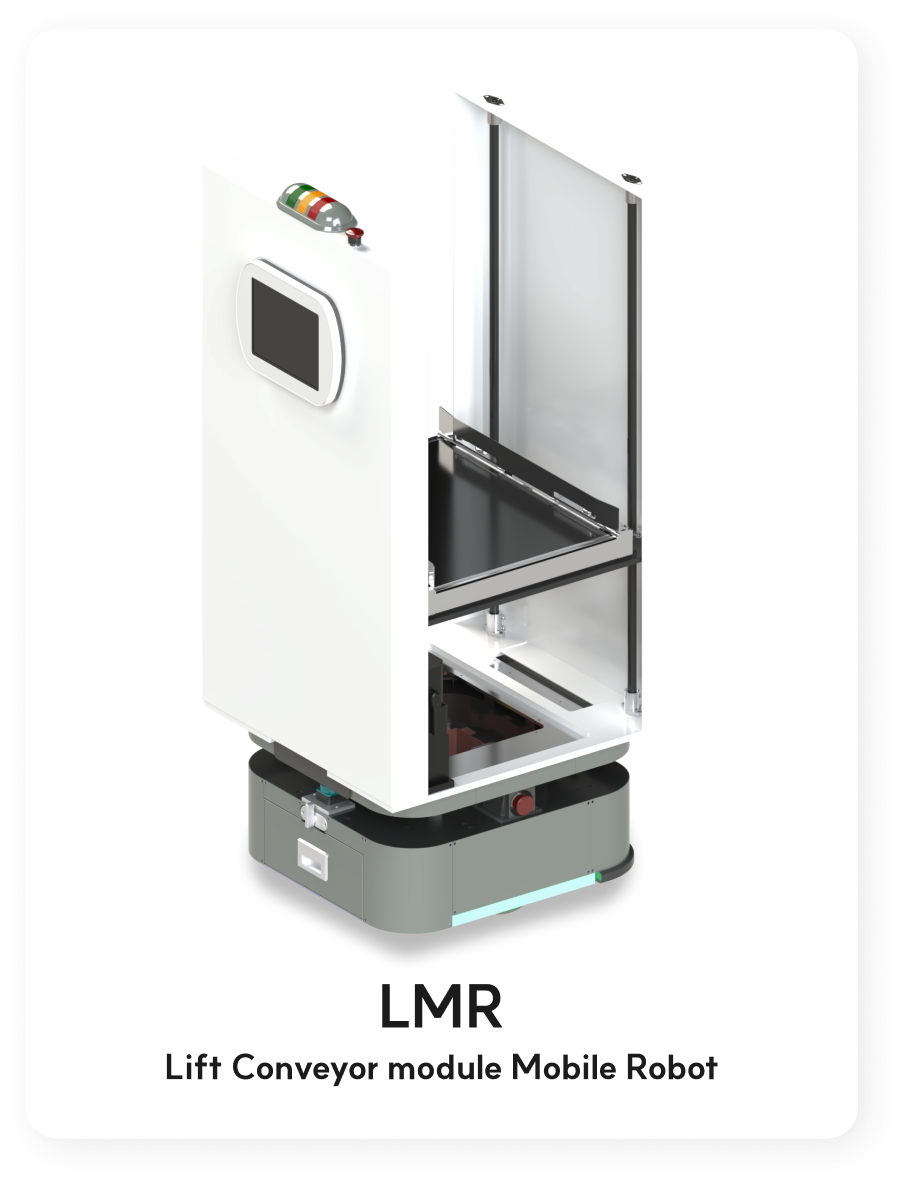

LMRLift Conveyor module
Mobile Robot

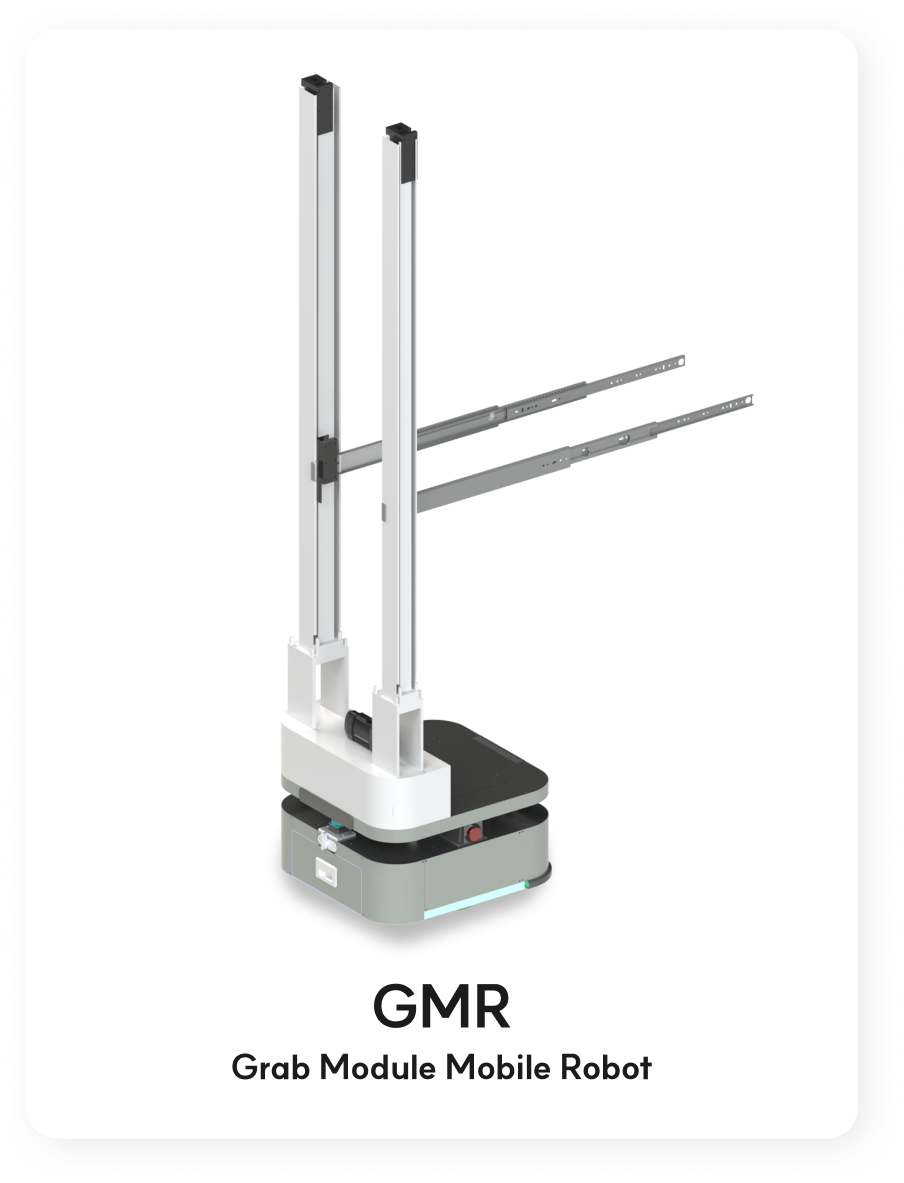

GMRGrab Module
Mobile Robot

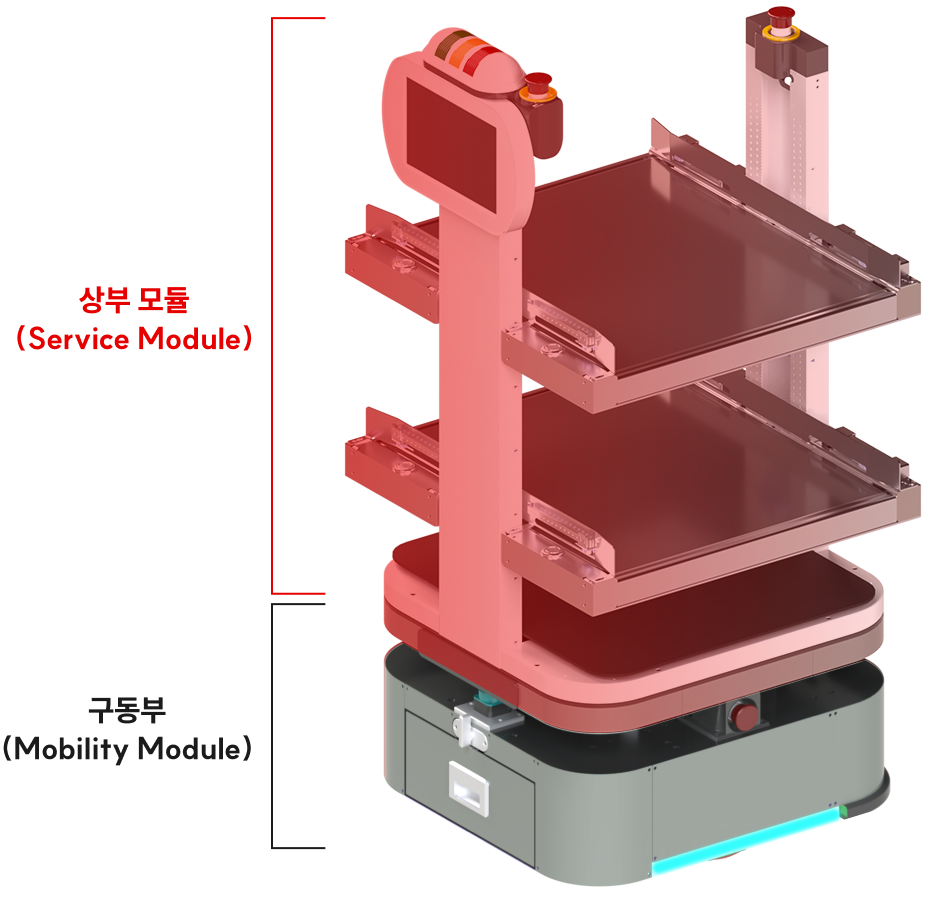

Flexibility

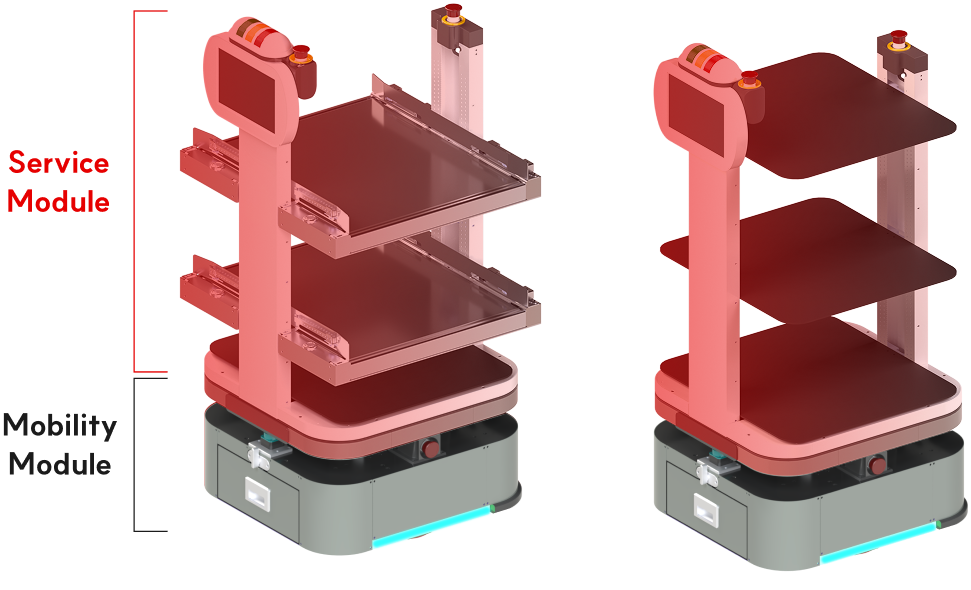

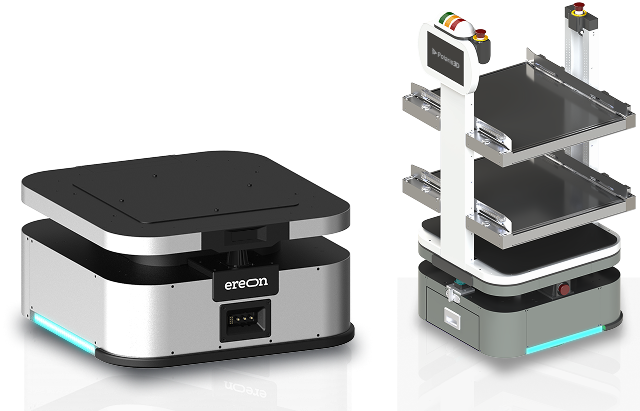

Polaris3D SMAR consists of

a Mobility Module and a

Service Module, offering customizable

robots tailored to meet the

specific needs of industrial environments

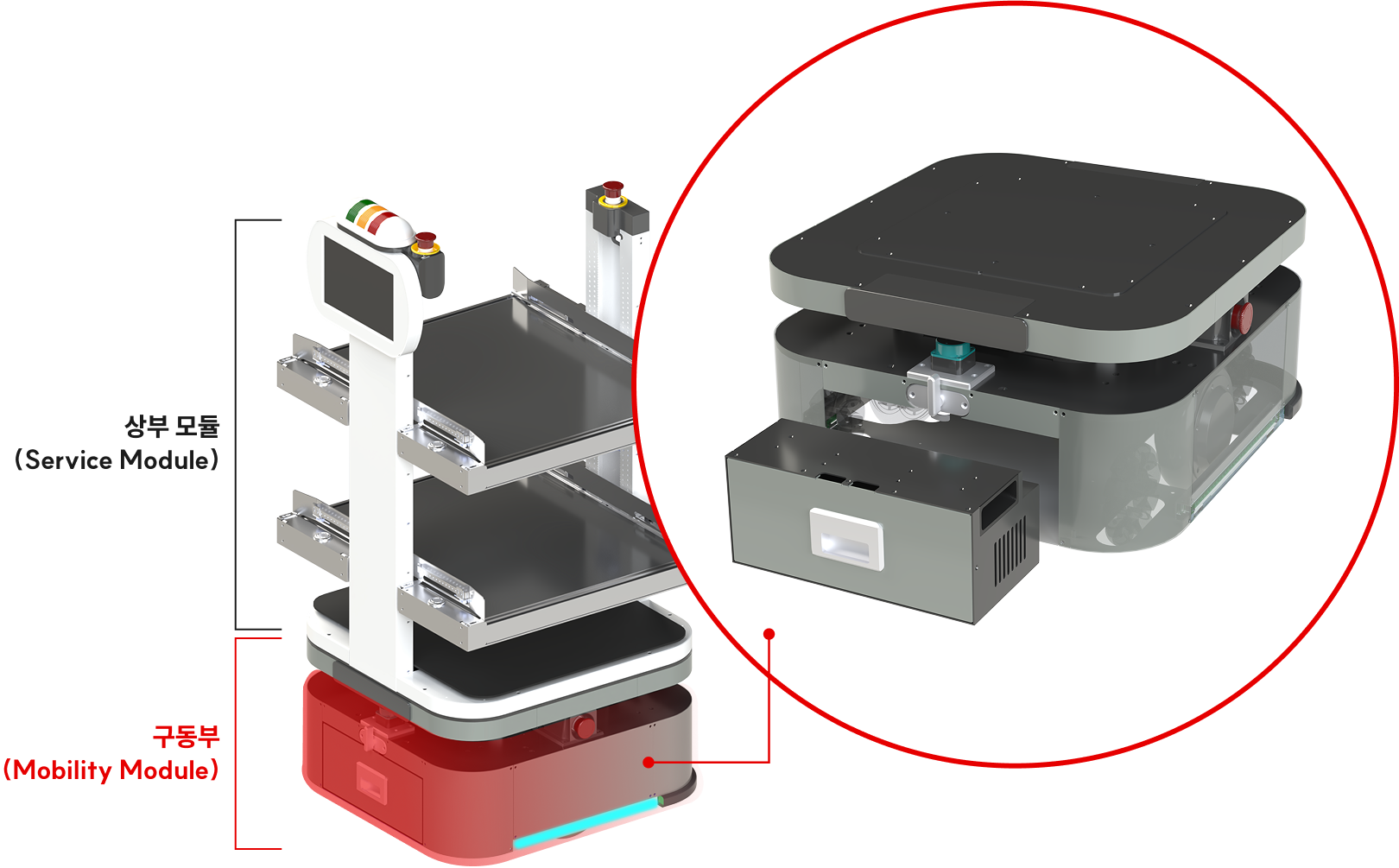

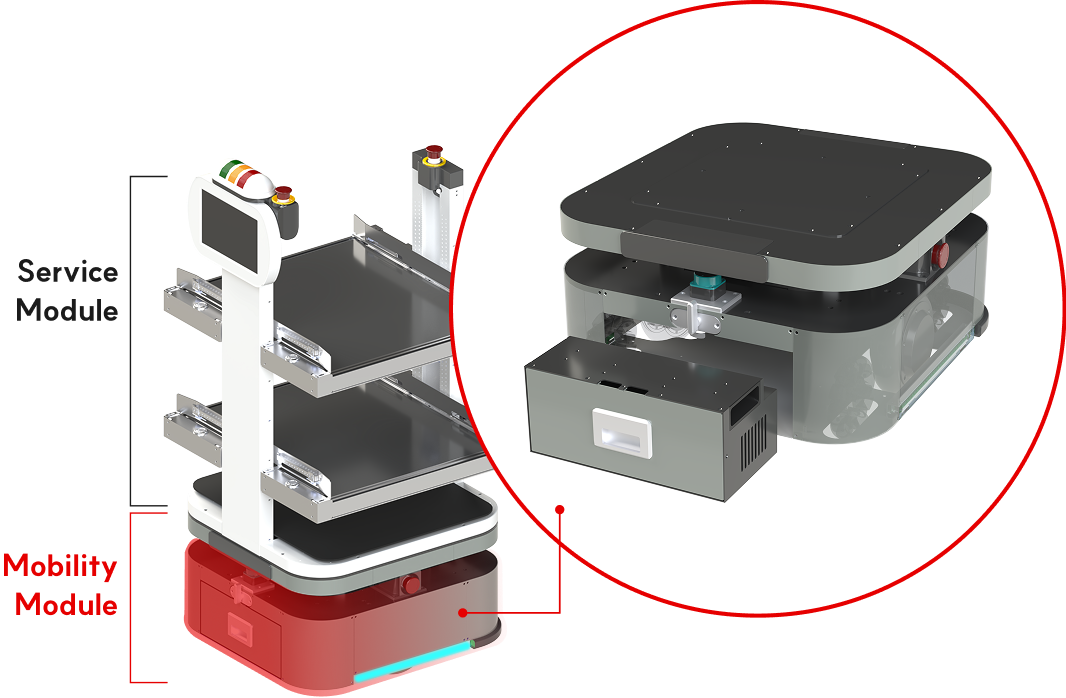

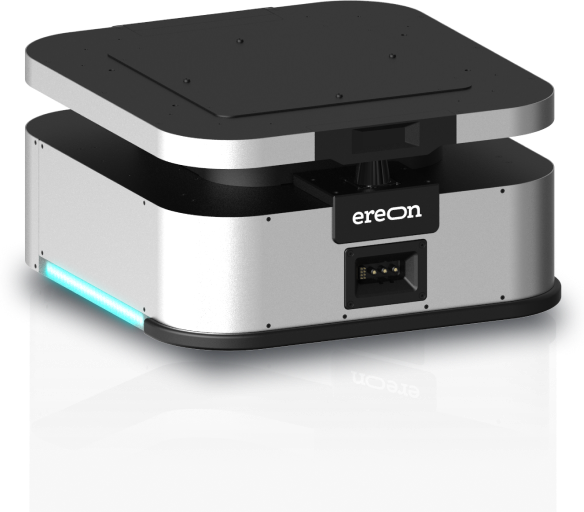

Mobility Module

A compact mobility module
engineered to overcome spatial
constraints in narrow environments
and achieved more stable
material transport

Product Specs.
Dimensions
550*580*310mm
Payload80kg
Sensor
Equipped with PL-B grade industrial LiDAR (both front and rear-mounted)

Battery

(Selectable)


  • Lithium Iron
    Phosphate LFP
    Battery (6.5 to 20 hours of operational time (Removable modular design with a built-in portable handle and locking
    mechanism)
  • Lithium-ion battery
    option available (IEC
    certified, fully rechargeable
    within 1.5 hours)

Max Speed
1.2m/s
Chassis
Material
EGI
(Electro-galvanized
steel sheet)


Safety Features


Safety Relay

ISO
certified safety bumper
AMR
Control System
STO Motor Drive
(Safe tonque off)
Drive narrow
corridor
Precision
docking capability

Service Module

Optimized for smart factory
environments offering flexible,
customizable service modules.

Service Module
(Conveor Part)

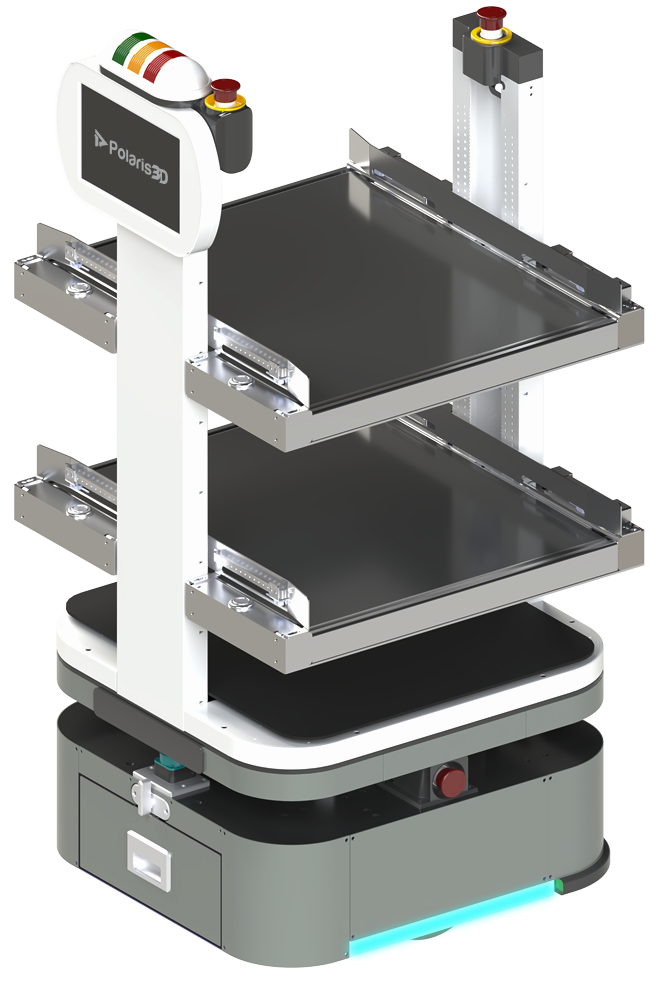

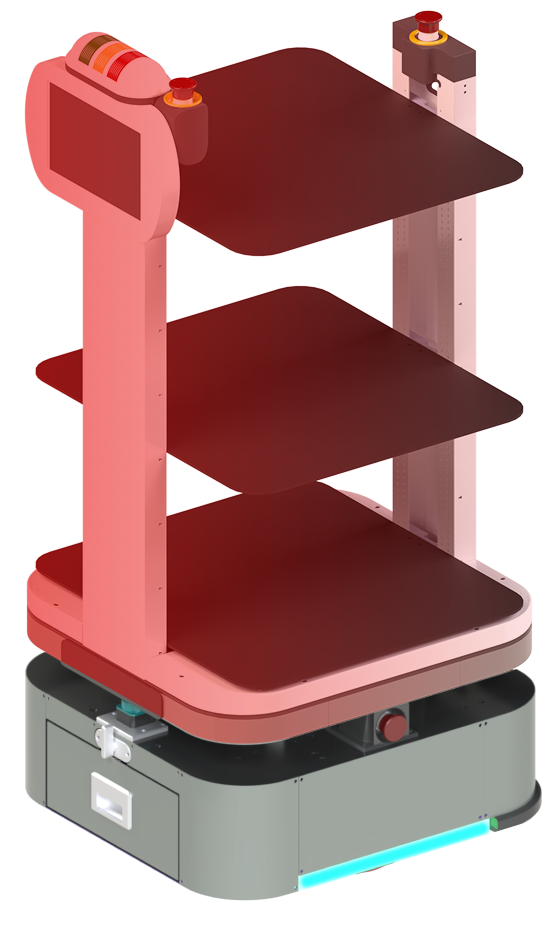

Service Module
(Shelf Part)

External Interface Support
We provide a wide range of
software and hardware solutions
essential for manufacturing automation.

External Power Output - 24V/10A
External Communication Space - Ethernet (RJ45)
Emergency
Stop Button
Three-Color
Signal Tower
10inch tablet
rgdb sensor

Fully Autonomous
Smart Factory Solution

A variety of accessories are available

to enable the transition

to a fully autonomous smart factory,

with seamless control

and monitoring

through the integrated system, Nepler.

Accessory

Platform

Smart Factory

Transition

Accessories

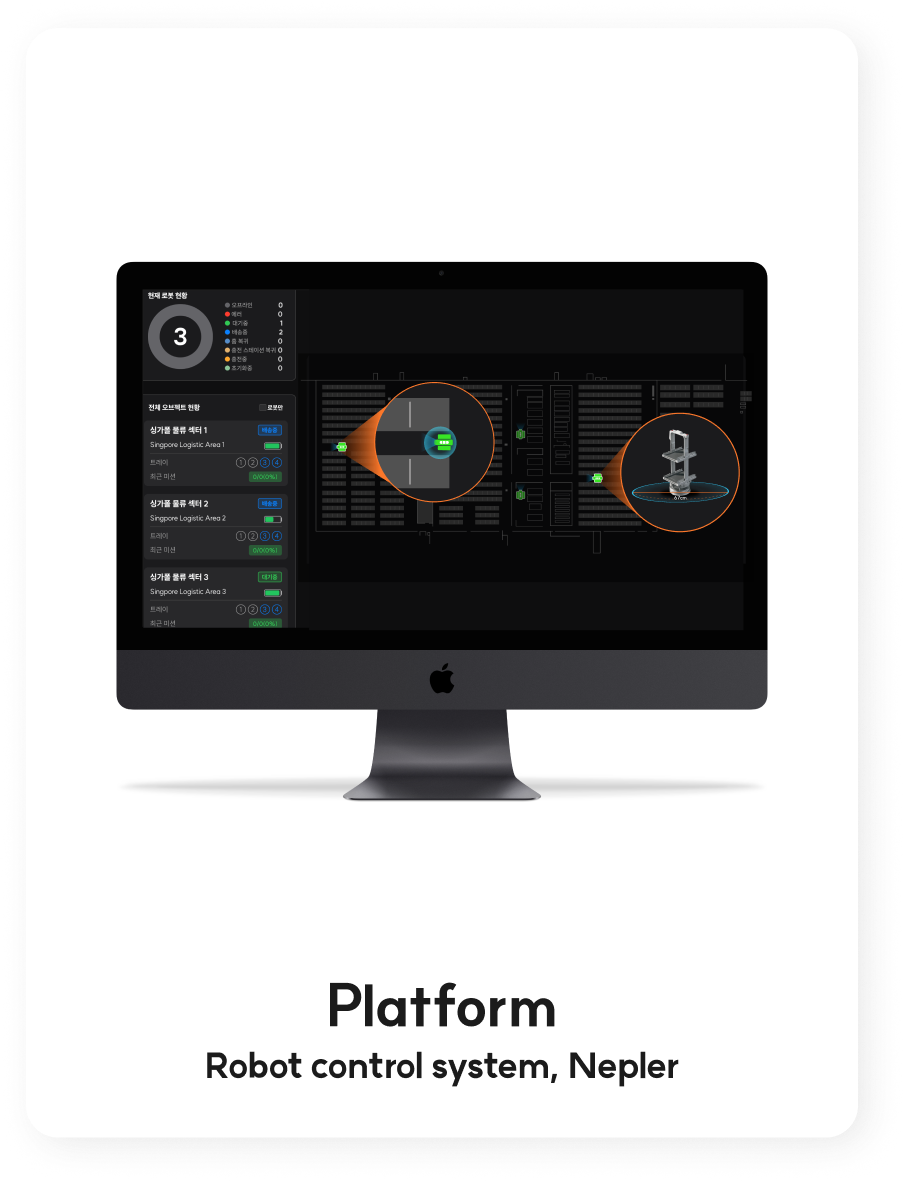

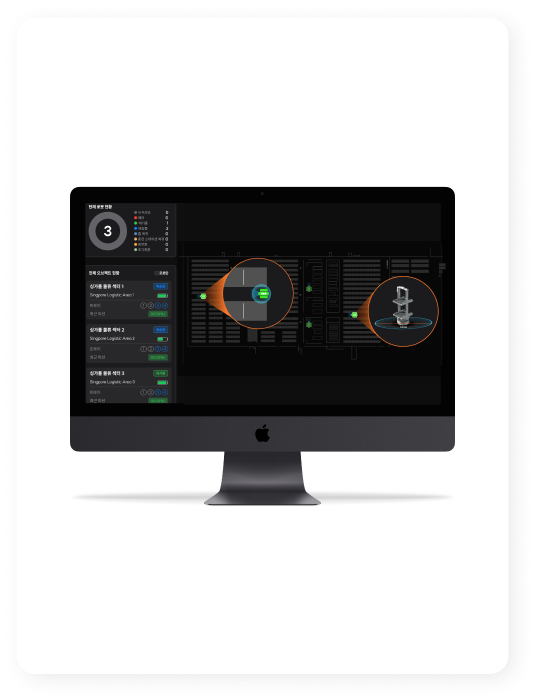

Robot control system,
Nepler

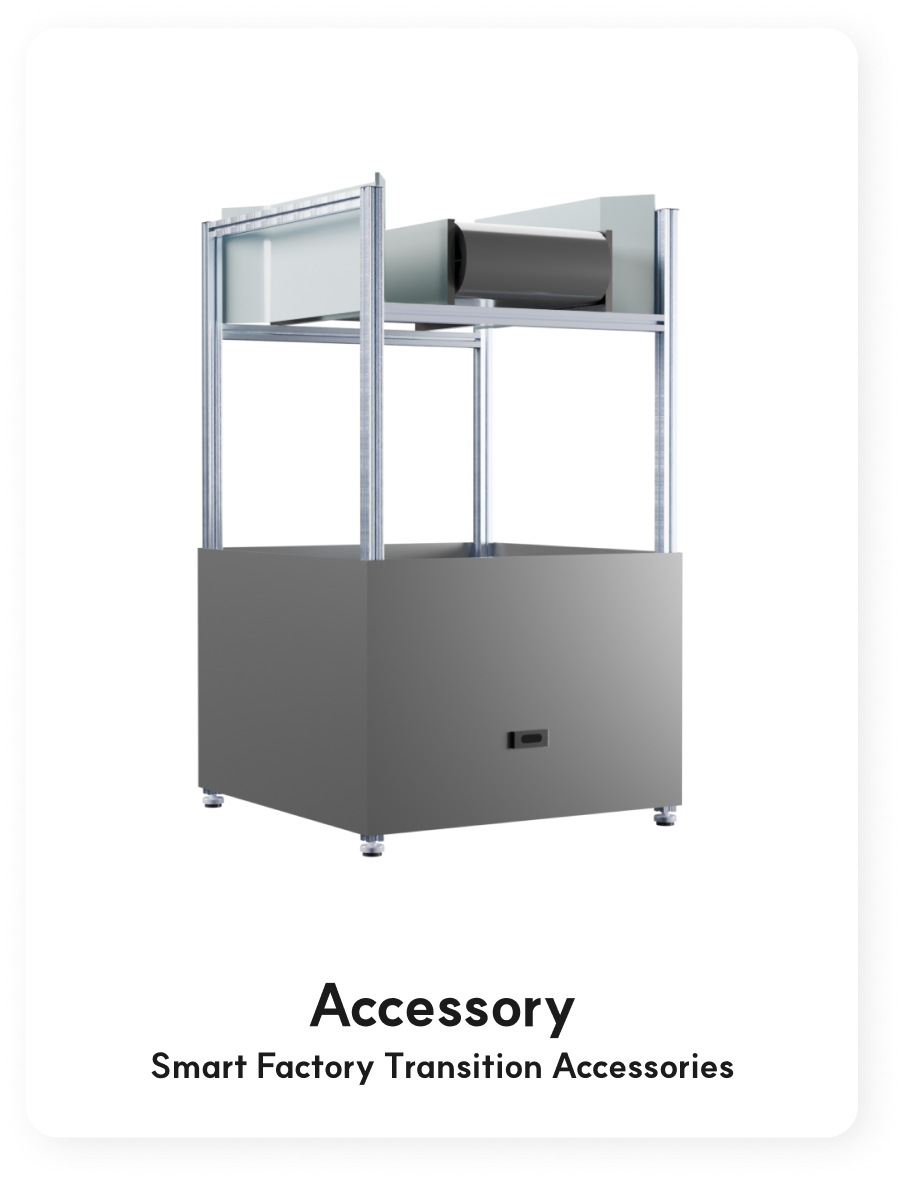

Smart Factory Conversion Accessories
Smart factory conversion accessories that can be easily installed on existing equipment,

enabling seamless logistics automation with minimal modifications to production facilities.

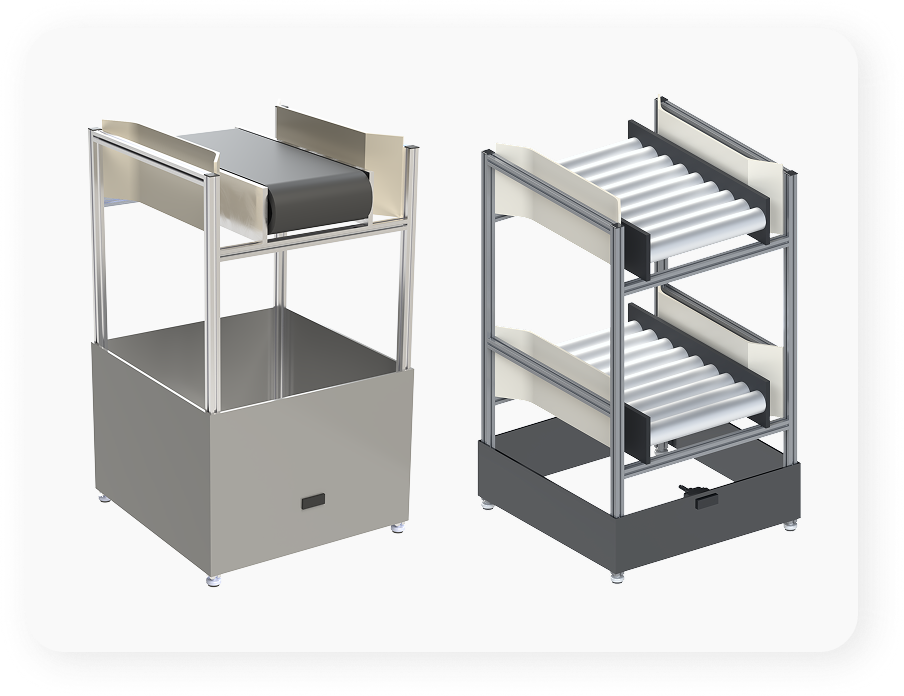

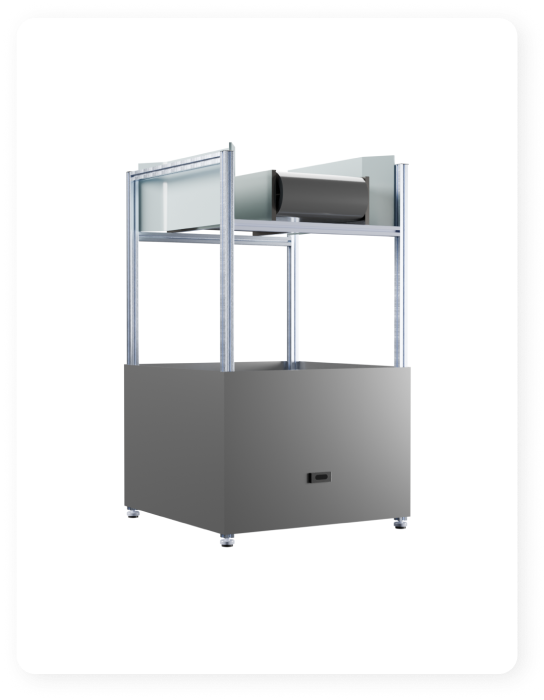

Stocker(Conveyor & Shelf Type)- Intermediate station for material buffering and auto in/out(Shelf / Conveyor, Powered / Non-powered)
- mimum size : 350*360*350
- maximum size : 450*600*1000

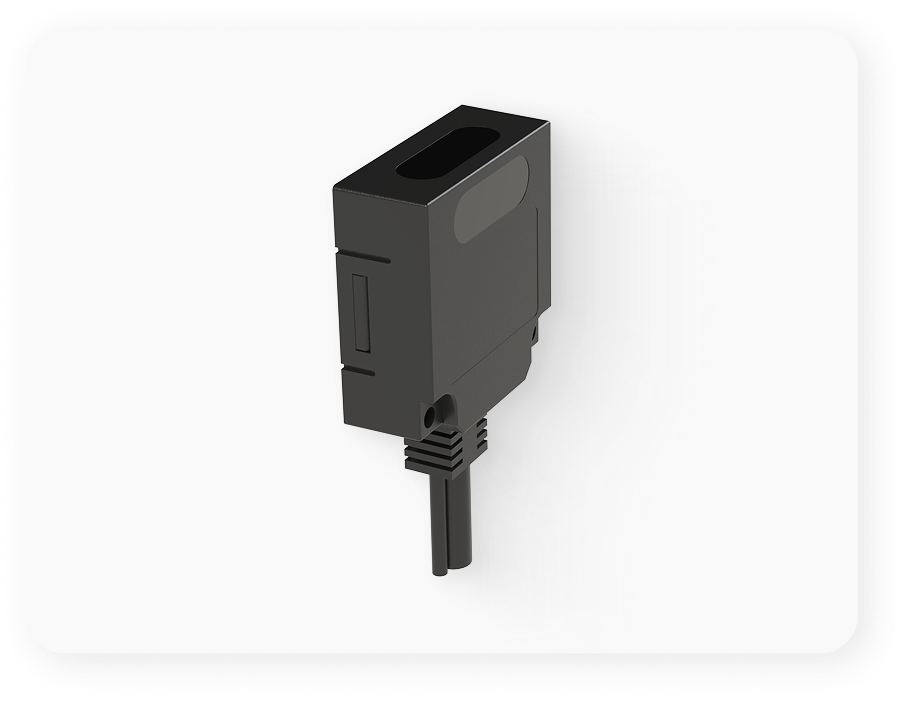

PIO SensorCommunication technology for
integration and automation
between equipment and robots.

Material Detection ModuleReal-time detection of material
loading status in equipment

DM Maker(Digital Matrix)Position guidance for docking with
logistics communication device

Charging StationWhen battery level drops below 20%,
the AMR automatically returns to
the charging station for self-charging.(Charging from 20% to 80% takes about 2 hours)

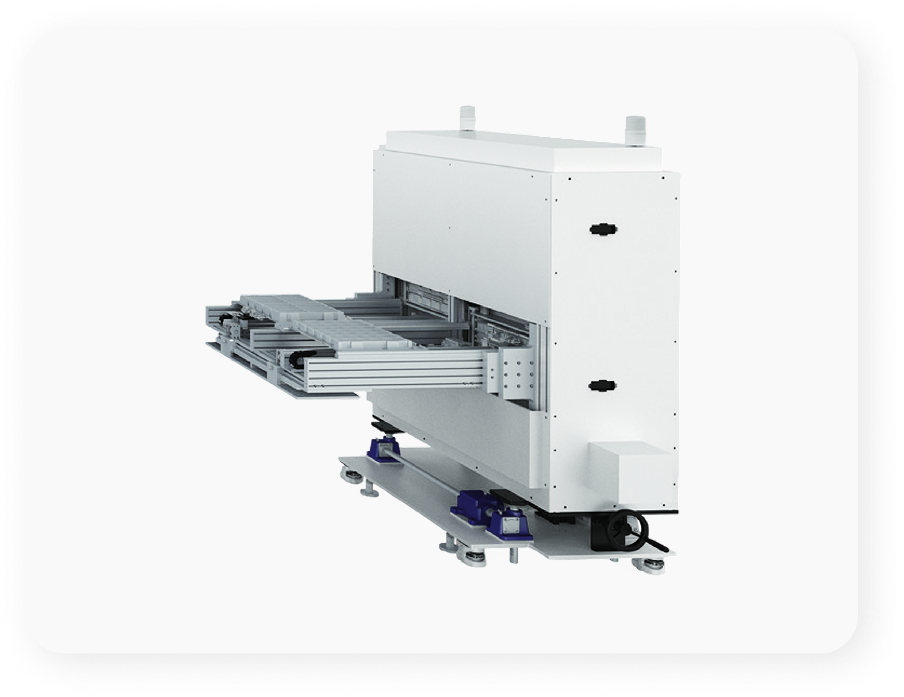

Smart Loader (Feeder)Fully automated transfer of
magazines to equipment without human intervention

Global Experience

From the leading electronics company
in Korea to operations in 11 global locations

Compact Seamless Manufacturing Automation Robot

No space constraints, No development burden. a faster and more efficient smart factory solution

SMAR SPECIFICATION

SMAR - Product Lineup

Built on a standardized lower mobility platform, our upper service modules are tailored for a wide range of applications

Flexible Robotic Platform for Industrial Automation

Polaris3D SMAR consists of a Mobility Module and a Service Module,

offering customizable robots tailored to meet the specific needs of industrial environments

Mobility Module

A compact mobility module engineered to overcome spatial constraints in narrow environments and achieved more stable material transport

Product Specs.
Dimensions550*580*310mm
Payload80kg
Sensor

 Equipped with PL-B grade industrial LiDAR (both front and rear-mounted)

Battery

(Selectable)


  • Lithium Iron Phosphate LFP Battery (6.5 to 20 hours of operational time (Removable modular design with a built-in portable handle and locking mechanism)
  • Lithium-ion battery option available (IEC certified, fully rechargeable within 1.5 hours)
Max Speed1.2m/s
Chassis MaterialEGI(Electro-galvanized steel sheet)
Safety Features
Safety Relay
AMR Control System
Drive narrow corridor
ISO-certified
safety bumper
STO Motor Drive
(Safe tonque off)
Precision
docking capability
Service Module

Optimized for smart factory environments offering flexible, customizable service modules.

Service Module
(Conveyor Part)
Service Module
(Shelf Part)
External Interface Support

We provide a wide range of software and hardware solutions essential for manufacturing automation.

External Power
Output-24V/10A
External Communication
Space-Ethernet(RJ45)
Emergency
Stop Button
Three-Color Signal Tower
10inch tablet
rgdb sensor
Fully Autonomous Smart Factory Solution

A variety of accessories are available to enable the transition to a fully autonomous smart factory,

with seamless control and monitoring through the integrated system, Nepler.

Smart Factory Conversion Accessories

Smart factory conversion accessories that can be easily installed on existing equipment,

enabling seamless logistics automation with minimal modifications to production facilities.

     Simple Buffer(Conveyor & Shelf Type)

  • Intermediate station for material buffering and auto in/out(Shelf / Conveyor, Powered / Non-powered)
  • mimum size : 350*360*350
  • maximum size : 450*600*1000

     PIO Sensor

  • Communication technology for integration and automation between equipment and robots.

     Material Detection Module

  • Real-time detection of material loading status in equipment

     DM Maker(Digital Matrix)

  • Position guidance for docking with logistics communication device

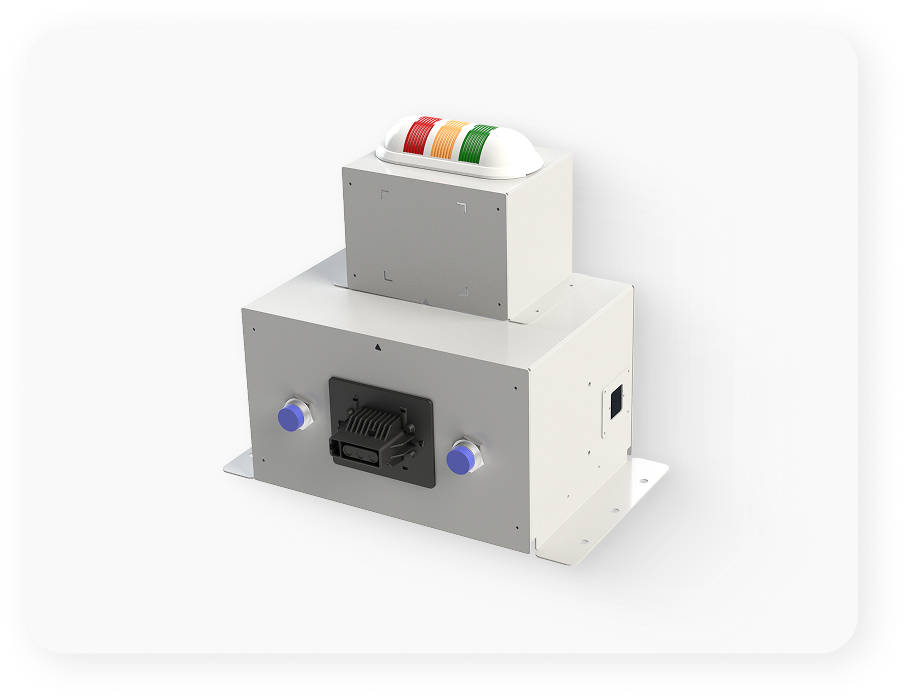

     Charging Station

  • When battery level drops below 20%, the AMR automatically returns to the charging station for self-charging.(Charging from 20% to 80% takes about 2 hours)


     Smart Loader (Feeder)

  • Fully automated transfer of magazines to equipment without human intervention
Global Experience

From the leading electronics company in Korea

to operations in 11 global locations

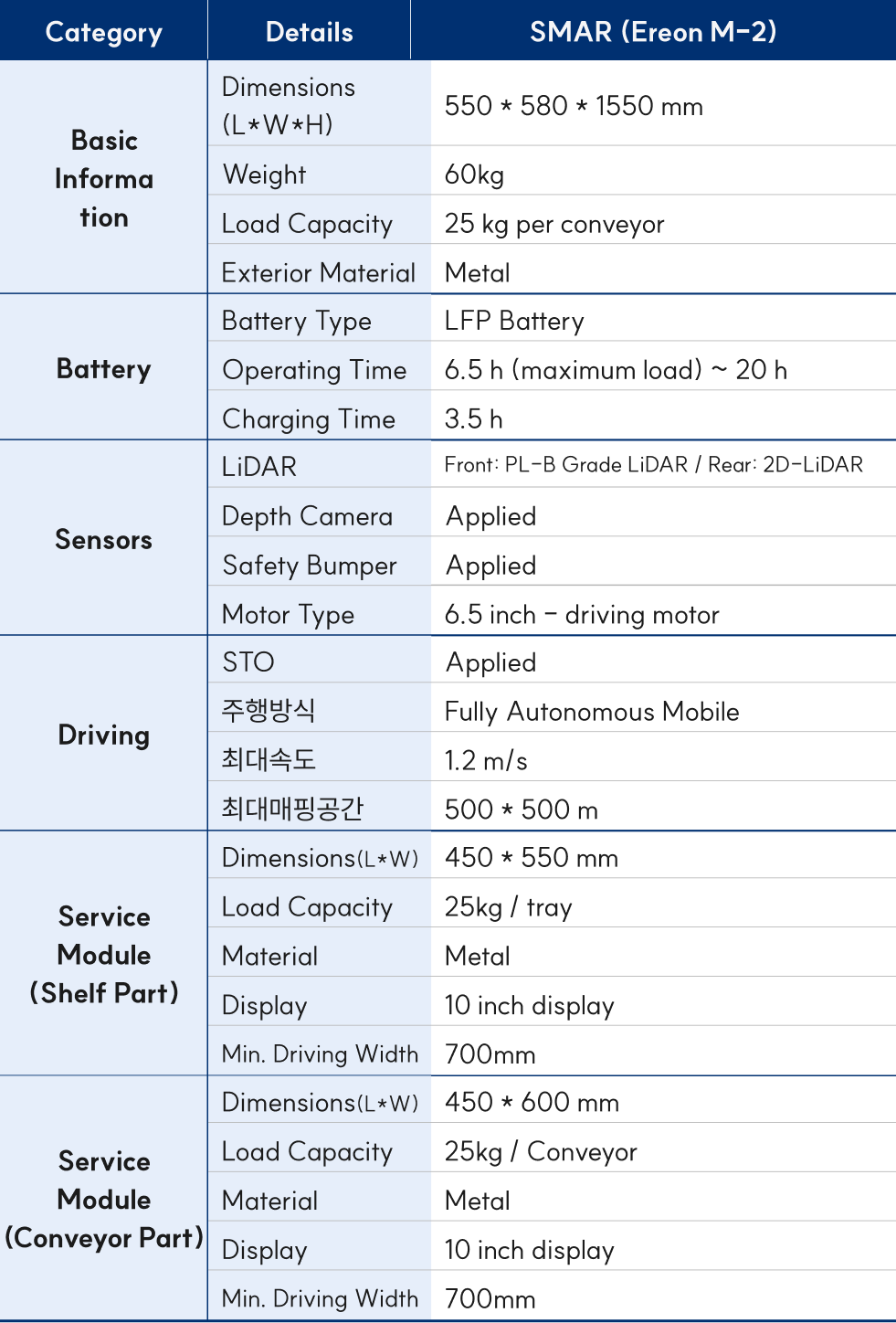

SMAR SPECIFICATIONS
Category
Details
SMAR(Ereon M-2)
Basic Information
Dimensions
(L × W × H)
550 * 580 * 1550mm
Weight
60kg
Load Capacity
25 kg per conveyor
Exterior Material
Metal
Battery
Battery Type

LFP Battery

Operating Time
6.5 h (max load) ~ 20 h
Charging Time
3.5h
Sensors
LiDAR
Front: PL-B Grade LiDAR / Rear: 2D-LiDAR
Depth Camera
Applied
Safety Bumper
Applied
Motor Type
6.5 inch - driving motor
Driving
STOApplied
Driving Mode
Fully autonomous
Max Speed
1.2m/s
Max Mapping Area
500 * 500m
Service
Module
(Shelf Part)
Dimensions (L × W)
450 * 550mm
Load Capacity25kg / tray
MaterialMetal
Display10 inch display
Min. Aisle Width
700 mm
Service
Module
(Conveyor Part)
Dimensions (L × W)
450 * 600mm
Load Capacity25kg / conveyor
MaterialMetal
Display10 inch display
Min. Aisle Width
700mm


Safety Certification

ISO 9001 Quality Management Certification

IEC 62619Industrial Lithium Battery Safety Certification

EMS Immunity Certificationfor Industrial Environments

UN38.3 Certification for Lithium Batteries

Certified to Safety Standardsof Korea’s Leading Company
